Using UDP, How to setup mod_cluster for standalone nodes which provide different service?

Solution In Progress - Updated -

Environment

  • Red Hat JBoss Enterprise Application Platform (EAP)
    • 6.x
  • Red Hat JBoss Enterprise Web Server (EWS)
    • Apache httpd
    • mod_cluster 1.2.x

Issue

  • Using UDP, How to setup mod_cluster for standalone nodes which provide different service?

Resolution

UDP - Multicast

1.Architecture

alt text

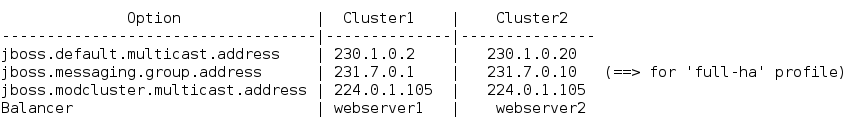

2.Cluster Multicast IP

alt text


3.Apache Server Configuration

  • 3.1. conf.d/mod_cluster.conf:
<IfModule manager_module>
  Listen 6666
  <VirtualHost *:6666>
    ServerAdvertise on
    EnableMCPMReceive
    <Location /mod_cluster_manager>
      SetHandler mod_cluster-manager
      Order deny,allow
      Deny from all
      Allow from all
   </Location>
  </VirtualHost>
</IfModule>
  • 3.2.conf/httpd.conf:
Listen 81
Listen 82

<VirtualHost *:81>
ProxyPass / balancer://webserver1/
</VirtualHost>

<VirtualHost *:82>
ProxyPass / balancer://webserver2/
</VirtualHost>

4.JBoss EAP 6.2

  • 4.1.ts2,ts3 in cluster1 standalone-ha.xml:
        <subsystem xmlns="urn:jboss:domain:modcluster:1.1">
            <mod-cluster-config balancer="webserver1" advertise-socket="modcluster" connector="ajp" >
                <dynamic-load-provider>
                    <load-metric type="busyness"/>
                </dynamic-load-provider>
            </mod-cluster-config>
        </subsystem>
  • 4.2.ts4 in cluster2 standalone-ha.xml:
        <subsystem xmlns="urn:jboss:domain:modcluster:1.1">
            <mod-cluster-config balancer="webserver2" advertise-socket="modcluster" connector="ajp" >
                <dynamic-load-provider>
                    <load-metric type="busyness"/>
                </dynamic-load-provider>
            </mod-cluster-config>
        </subsystem>

5.Start Script:

  • 5.1.ts2 in cluster1 ... node1 (x.x.x.134)
  ./bin/standalone.sh -c=standalone-ha.xml -Djboss.bind.address.management=x.x.x.134 -Djboss.bind.address=x.x.x.134  -Djboss.node.name=ts2
  • 5.2.ts3 in cluster1... node2 (x.x.x.228)
  ./bin/standalone.sh -c=standalone-ha.xml -Djboss.bind.address.management=x.x.x.228 -Djboss.bind.address=x.x.x.228  -Djboss.node.name=ts3
  • 5.3.ts4 in cluster2 ... node3 (x.x.x.134)
  ./bin/standalone.sh -c=standalone-ha.xml -Djboss.bind.address.management=x.x.x.134 -Djboss.bind.address=x.x.x.134  -Djboss.node.name=ts4 -Djboss.socket.binding.port-offset=100 -Djboss.default.multicast.address=230.1.0.20 -Djboss.messaging.group.address=231.7.0.10
